The Story

Tame the outdoors, without sacrificing style and luxury.

The seamless welding and gleaming polished exterior, plus the stylish beveled front rim and backlit knob controls (that recess out of sight), deliver an elevated Italian design for outdoor cooking. Also, LED lighting will brilliantly illuminate the cooking area at night and last the life of the hood. Capri is equipped with dual sets of angled stainless steel professional baffle filters, that provide exceptional air capture and a 1200 cfm blower has the power to do the job. The extra deep 32” hood body can be complimented with an optional 3” spacer that will extend the depth to 35” for added capture efficiency, plus optional 12” and 6” duct covers are available to reach any ceiling height.

What's Included

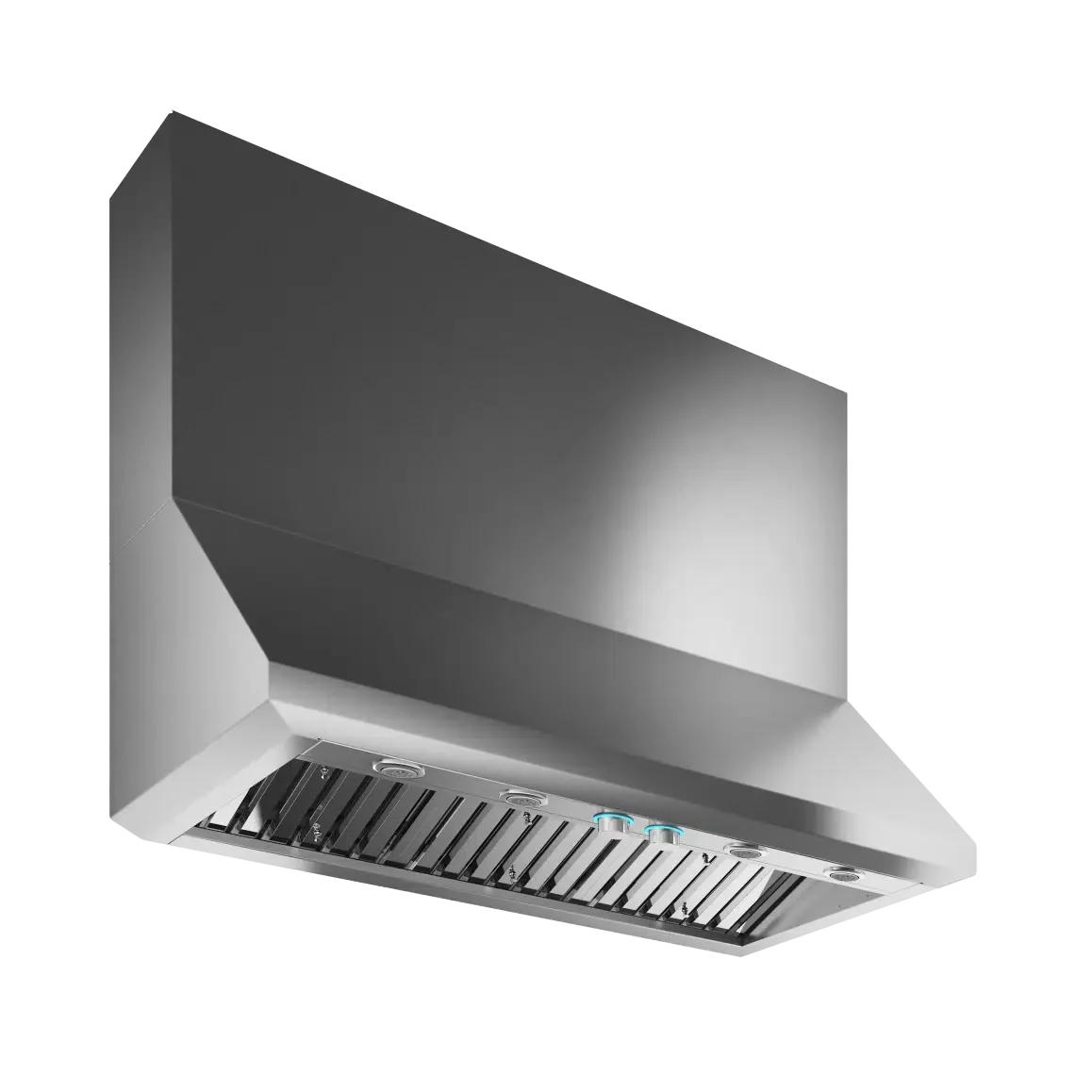

Capri 48" Outdoor Wall Hood Unit
1 - Hood assembly and LED lamps already installed
14 pcs - 5.4 x 75 mm screws
4 pcs - 6.4 x 18 mm flat washers
9 pcs - Square Nuts
4 pcs - 4.2 x 19 mm screws
1 - Round Transition 10" (25.4 cm)
1 - Horizontal Support
14 pcs - 10 x 60 mm wall anchors (concrete)
9 pcs - 6 x 16 mm screws

Not Included (Sold Separately)

Blower Kit
Duct Cover Kit
Space Kit

Features

Main Features

Grease Collectors - Effortless grease removal with stainless steel filters
Professional grade Stainless Steel Baffle Filters designed for high airflow cooking, trap volumes of grease which are collected in trays for easy removal and cleaning.
Heat Guard - Stay cool under pressure, adjust temperature automatically
Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
Seamless Look - Elevate your kitchen with refined elegance
Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
Professional Performance - Unleash high performance with special features!
Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.

Other Features

Corrosion Resistant Grade Stainless Steel - Capri features a heavy gauge, corrosion-resistant 304-grade stainless steel body, which will withstand the harshest environment.
Fully retractable rotating knobs with blue backlighting
LED lights
10” Round with BackDraft Damper (top)
Ducted Installation Only
Led consumer replaceable bulb
Senses extreme temperatures and automatically adjusts the blower speed to HIGH
Stainless steel baffle filters with grease collectors

Specifications

Item Number	ECP148SS
UPC Code	190603002300
Brand Name	Elica
Series	Capri
Blower Type (sold separately)	Internal or external 1200 CFM(4-speed)
Noise (sones)	8.5 Sones
Finish	Corrosion Resistant Grade Stainless Steel
Controls	Fully retractable rotating knobs with blue backlighting
Illumination	4 LED, 7.5 Watts LED light
Filter Type	(6) Dishwasher-Safe, Professional Stainless Steel
Duct Transition	10” Round with BackDraft Damper (top)
Installation Type	Ducted Installation Only
Electrical Requirements	120V – 60 Hz
Width	48"
Depth	32"
Height	18"
Weight	137 lbs

Warranty

Two (2) Years Parts & In-Home Labor
